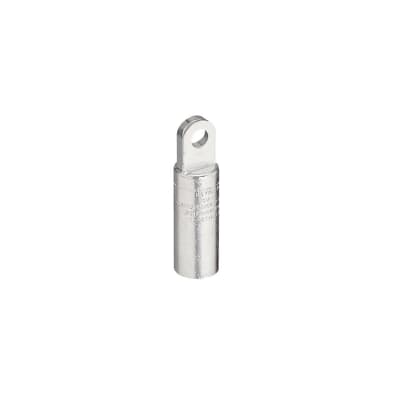

Spade Connector-03700400
General Information
Extended Product Type: Spade Connector-03700400
EAN: 5415022569858
Catalog Description: 600A 1H AL COMPR LUG 900STR 1000SOL
Long Description: 15/25/35kV 600 Amp Series Deadbreak Compression Lug (Tin-Plated Aluminum). Conductor Size kcmil Compressed/Stranded 900 or Compacted/Solid 1000 /mmSquared Compact 500. Length 5.94 inches. Diameter 1.38 Inches. 1-Hole Pad, .50 inch Thick. Hole Size .688 inch Diameter.
