ABB · MEDIUM VOLTAGE · AUTHORISED DISTRIBUTOR
Molded rubber cable accessories for underground power distribution
Pioneering underground cable accessory innovation since 1957, ABB’s Elastimold® range of high-quality EPDM rubber and solid dielectric components splice, terminate, connect, ground, and protect underground electrical cable systems from 5kV to 138kV. Trusted by utilities worldwide for grid hardening, undergrounding, storm resiliency, and renewable energy integration — Elastimold is the standard for safe, durable underground power distribution.
ABB opened a $40M+ facility in New Mexico, USA — doubling Elastimold production capacity
1957
Founded — 65+ Yrs
5–138Kv
Voltage Range
100%
Factory Tested
USA & Eu
Manufactured
VOLTAGE CLASS RANGE
5–15Kv
Class A 110kv Bil
25Kv
Class B 150kv Bil
35Kv
Class C 200kv Bil
Up To 138Kv
Transmission Hv Applications
KEY FEATURES
Durable EPDM rubber
EPDM rubber moulded products and epoxy components engineered to withstand harsh underground environments for decades without maintenance.
100% factory tested
Every product is 100% tested before leaving the USA and Hungary manufacturing facilities — ensuring consistent quality and reliability in the field.
Solid dielectric first
Elastimold was the world's first to offer a completely solid dielectric line of switchgear — the most complete package for underground cable management.
Separable & deadfront
200A and 600A deadbreak and loadbreak separable connectors for safe live-line operations on padmount, vault, and subsurface equipment.
CHALLENGES SOLVED
Flooding Risk & Wet Environments
Corrosive & Marine Conditions
Long Service Life Requirements
Low-Maintenance Installations
Retrofit & Legacy Infrastructure
Continuous Operation Demands
Labour Constraints & Workforce Gaps
Storm Resiliency & Grid Hardening
SOLUTIONS BY INDUSTRY
Electric utilities
Underground distribution cable accessories for utility networks — splicing, terminating, connecting, and grounding medium voltage cable from 5kV to 138kV for safe power delivery to homes and businesses.
Solar power
Underground cable accessories for solar farm collection systems and MV interconnection — designed for outdoor, direct sunlight, and subsurface installation in renewable energy projects.
Wind power
Onshore and offshore wind farm underground cable connection and termination systems — rated for corrosive, marine, and high-humidity environments at medium voltage.
Commercial & industrial
Underground cable accessories for medium voltage service entrances, industrial facilities, data centres, and commercial building substations requiring reliable power connections.
Residential & infrastructure

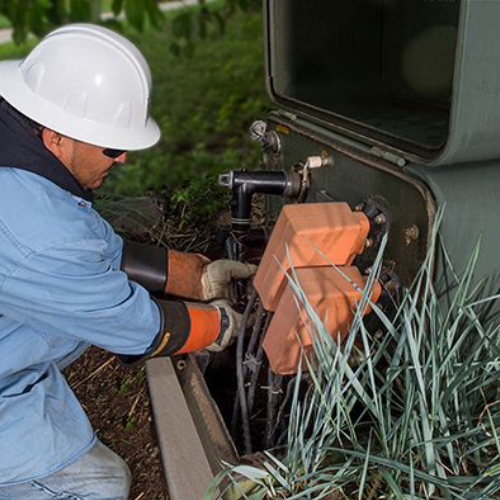

Padmount transformer connections, underground residential distribution (URD), and infrastructure undergrounding projects — reducing overhead lines and improving grid resilience.
Power generation
Cable splices, terminations, and grounding accessories for power plant underground distribution systems — supporting both conventional and renewable generation facilities.
SYSTEM SOLUTIONS — PRODUCT RANGE

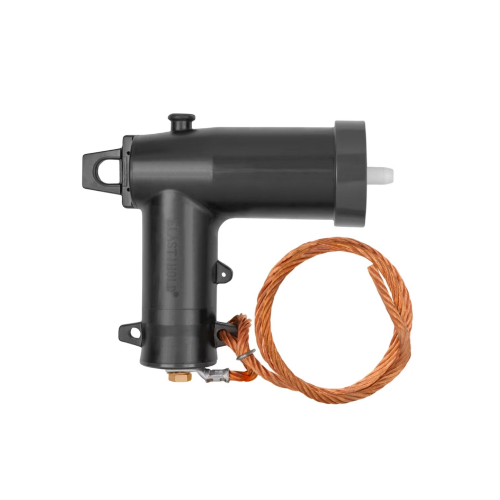

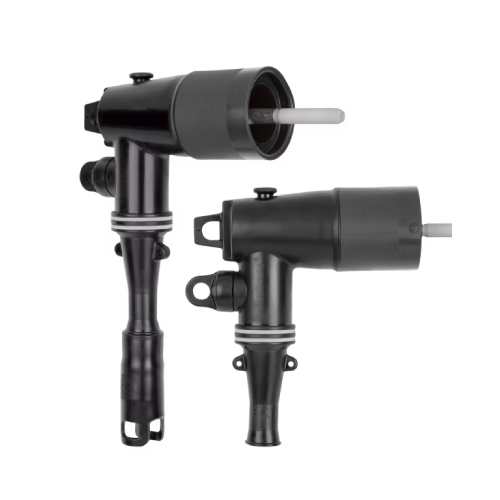

Separable Connectors — Deadbreak & Loadbreak
200A and 600A deadbreak and loadbreak elbows (15kV, 25kV, 35kV) for connecting underground cable to padmount transformers, switchgear, and distribution equipment safely.
Cable Joints & Splices
Inline and transition cable joints (15kV, 25kV, 35kV) for splicing underground XLPE and EPR insulated cables in direct buried, vault, and conduit installations.
Cable Terminators
Ranger2™ indoor and outdoor silicone rubber terminations for 15kV–35kV XLPE and EPR cable systems — covering riser pole, indoor, outdoor, and padmount applications in 3 sizes.
Fused Elbows
Current-limiting fused elbows providing fault protection for padmount transformers and submersible equipment — available in 15kV, 25kV, and 35kV classes.
Surge Arresters
Deadfront surge arresters for underground distribution systems — protecting transformers and cable insulation from lightning surges and switching transients.
Grounding Devices — Veri-Spike™
Veri-Spike™ grounding aid and 35kV grounding aid devices provide a safe, quick method to verify system de-energisation before maintenance begins — rated to 25,000A momentary.
Solid Dielectric Switchgear Interfaces
Interface accessories for Elastimold's pioneering solid dielectric switchgear — the most complete system available for managing all underground cable connections from a single source.
Accessories — Adapters, Caps & Test Points
Cable size adapters, jacket seals, insulated caps, test point elbows, thread converters, and installation tools — supporting fast, code-compliant system assembly.
CERTIFICATIONS & STANDARDS
- IEEE 386
- ANSI C119.2
- UL Listed
- 100% factory tested
- IEEE 48
- ICEA S-94-649
- NEMA standards
- RUS approved
- CSA certified
- ISO 9001
Need Elastimold® Cable Accessories For Your Project?
from Pankaj Electricals today.
